Pedaltrain True Fit Universal Mounting Kit for Novo, Terra and XD Series (PT-TFMK-SM)


This item ships separately via USPS. Please be advised it may take up to three business days for USPS to pick up your shipment from our warehouse. We will email the tracking information to you when your order ships.

About True Fit Mounting Kit (Small Size) for Pedaltrain Novo and Terra Series

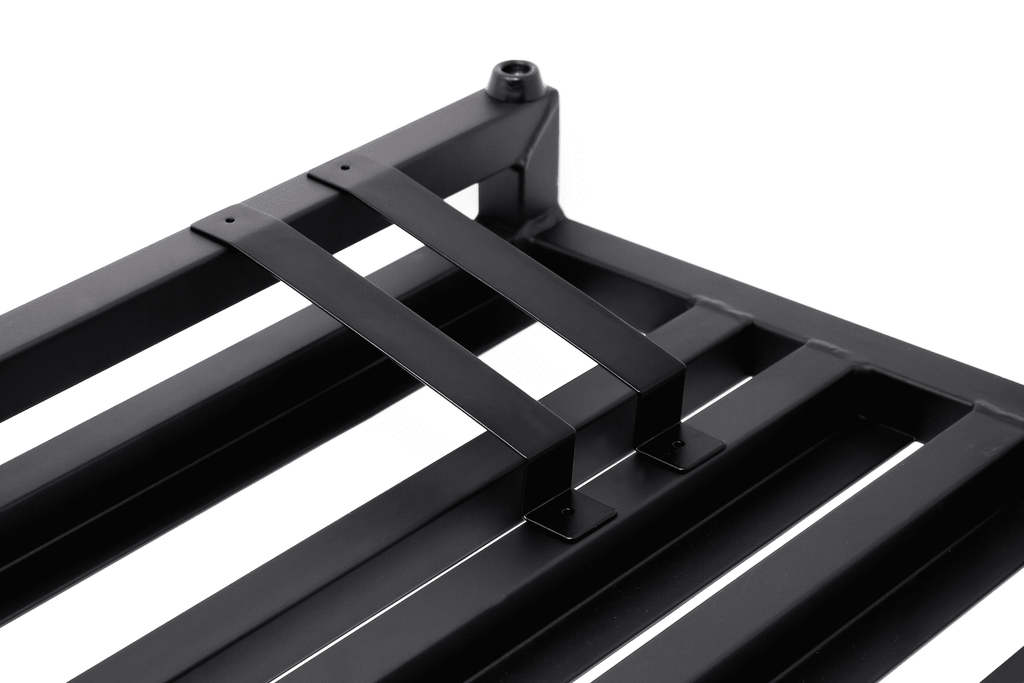

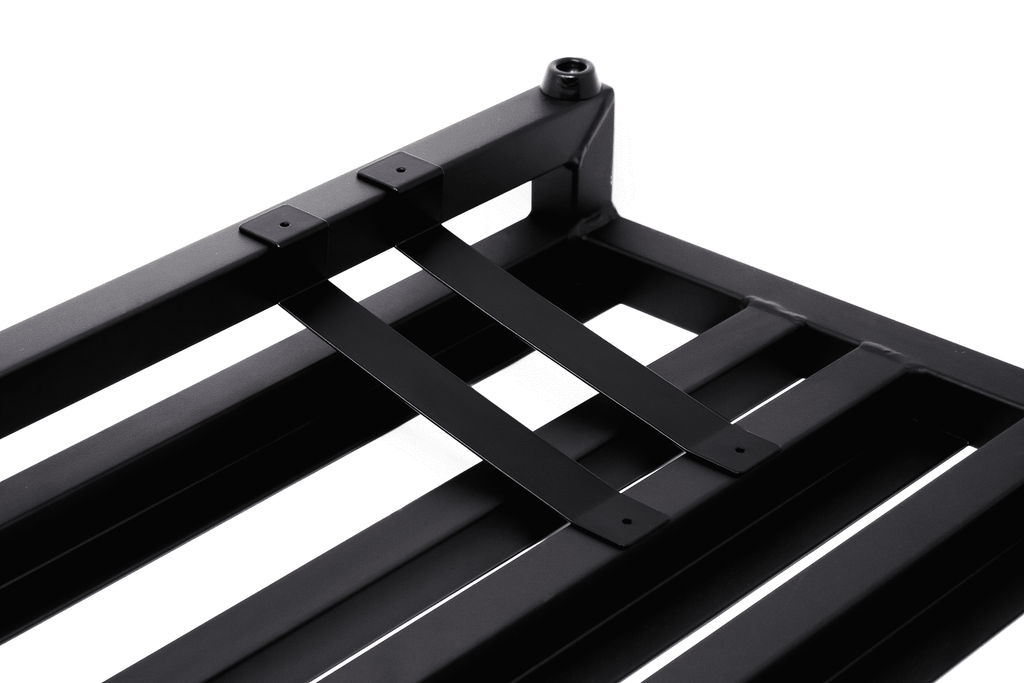

The next generation of our universal brackets is here. The True Fit Mounting Kit is available in two sizes, designed to fit our various pedalboard collections perfectly. The new two-way "Flip Flop" design provides more options than ever to mount power supplies, wireless units, direct boxes, and more under your Pedaltrain. Comes with everything you need to mount including screws and velcro.


  • Novo 18
  • Novo 24
  • Novo 32
  • XD-18
  • XD-24
  • Terra

Mounts most other brands of power supplies underneath the Novo and Terra series boards

Shorter design for use with Pedaltrain Novo, Terra and XD Series

Contents: 2 brackets, 4 screws, 2 strips of hook-and-loop

Note:  This bracket is not compatible with vintage Pedaltrain Jr/1/2 models (those with "port holes").  These Pedaltrain models shipped with the correct bracket in the kit. Replacement brackets can be found here.

Need help deciding which Mounting Bracket you need? Check out this article from our Help Center: Which Bracket is Right for Me?
